SpellBrite Hang Tab (Angle Adjustment) Instructions
If you prefer a pdf version of these instructions, click here.
Thank you for your purchase! Your new Hang Tab (Angle Adjustment) Kit contains 10 Hang Tabs which allow you maximum flexibility in hanging your SpellBrite sign. Using the Hang Tabs, you can:
1. Adjust the Pitch Angle of Your Sign
2. Hang Multi-Row Signs with Ease
3. Create Attention-Grabbing Sign Formations
How To Install Hang Tabs

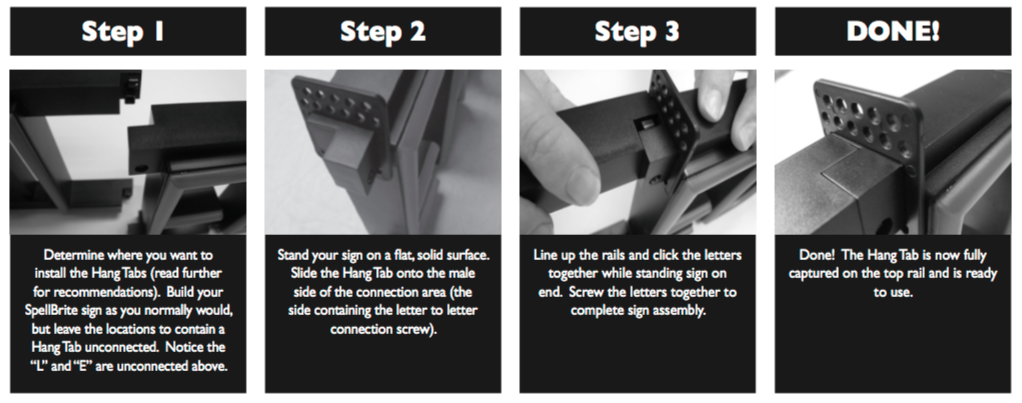

Installing Hang Tabs is as simple as 1..2..3! Hang Tabs can be installed at any letter to letter joint on the top or bottom rail. The images below demonstrate the installation of a Hang Tab on the top rail.
How To Adjust the Pitch Angle of Your Signs

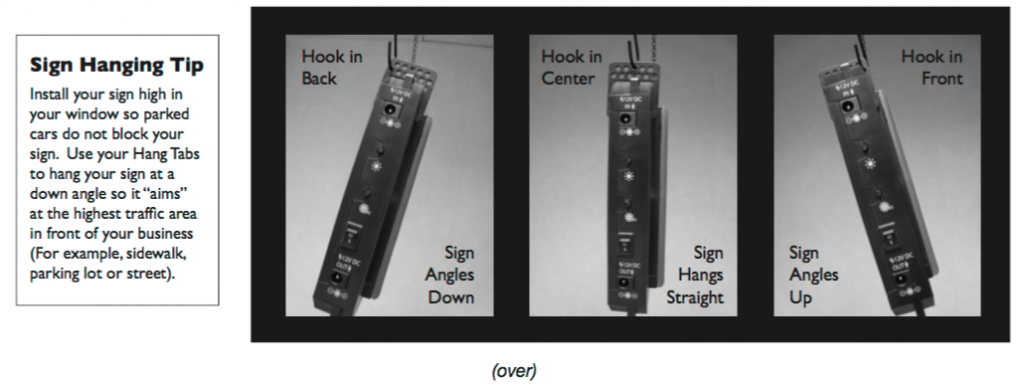

To angle your SpellBrite sign down, insert the chain hooks into the holes in the back of the Hang Tab. To angle your SpellBrite sign up, insert the chain hooks into the holes in the front of the Hang Tab.
How to Hang Multi-Row Signs with Ease
First, completely assemble each of your signs and lay the signs face up on a table in the desired order and orientation. The sign below shows “CHEESEBURGER” on top and “$4.25” centered below it.

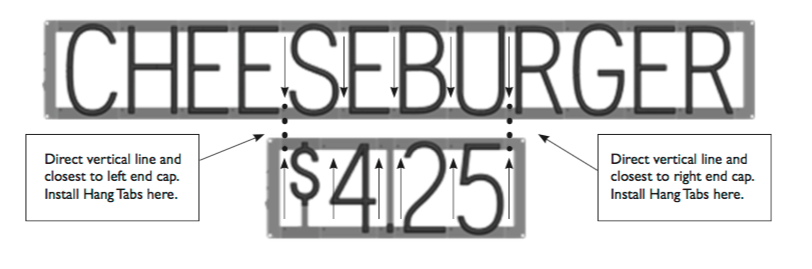

Next, determine where your Hang Tabs can be installed on the bottom rail of “CHEESEBURGER” and top rail of “$4.25”. Once installed, your Hang Tabs can slide to any position on any rail between the illuminated letters. The arrows below indicate possible Hang Tab locations on each row.
Locate your Hang Tabs in positions in which you have a direct vertical line between the top row Hang Tab and bottom row Hang Tab. A direct vertical match will assure that the bottom row hangs straight and stays where you want it. For optimal stability and control, locate your Hang Tabs at the first vertical top/bottom match closest to the outside boundaries of the sign (closest to the end caps).
Create Attention-Grabbing Sign Formations

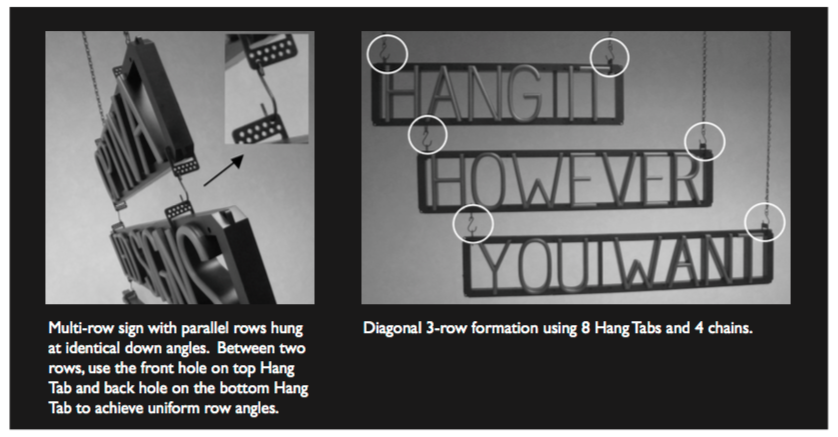

Using your SpellBrite Hang Tabs, there is virtually no limit to the types of multi-row sign formations you can build. Below are two examples. If you are located in a high-traffic area, you may consider changing your sign’s message(s) and/or formation frequently. Studies have shown that simply changing window signage increases business traffic and sales.
Questions: Please contact us at [email protected] or (312) 575-9620
