Now That’s Cool!

From heatless light streams to brightness and motion that you can control, SpellBrite puts powerful sales expressions safely and simply at your fingertips…A thru Z, 1-2-3! (not to mention 4-9, + 0).
1

Cool to the Touch

Low-voltage, energy efficient dissipation keeps SpellBrite cool to the touch and allows it to be comfortably placed within reach of customers and employees.

2

Accessible Control Panel

Puts all settings in convenient reach on the left end cap.

3

Choice of Brightness

Features 6 pushbutton settings ranging from nightlight dim to piercingly ultra-bright.

4

Eye-Catching Animations

Modular rows can animate among 8 pushbutton settings to flash, pulse or remain static.

5

Easy ON/OFF Switching

Convenient toggle button powers each row ON or OFF. Eliminates any unnecessary bending, crawling or reaching to unplug.

6

Jack for Power Supply

12V power supply plugs into the left endcap.

7

Reinforced Connection Points

With click-in-place, screw-locking connections to strengthen frame integrity plus stay-in-place captive screws that won’t ever detach to get lost or misplaced.

8

Clutter Free

All letter-to-letter power wires and electronics stay safely unexposed and encased within the modular frame.

1Cool to the Touch

Low-voltage, energy efficient dissipation keeps SpellBrite cool to the touch and allows it to be comfortably placed within reach of customers and employees.

2Accessible Control Panel

Puts all settings in convenient reach on the left end cap.

3Choice of Brightness

Features 6 pushbutton settings ranging from nightlight dim to piercingly ultra-bright.

4Eye-Catching Animations

Modular rows can animate among 8 pushbutton settings to flash, pulse or remain static.

5Easy ON/OFF Switching

Convenient toggle button powers each row ON or OFF. Eliminates any unnecessary bending, crawling or reaching to unplug.

6Wall to Wall Power

12V power source plugs into any standard wall outlet.

7Reinforced Connection Points

With click-in-place, screw-locking connections to strengthen frame integrity plus stay-in-place captive screws that won’t ever detach to get lost or misplaced.

8Clutter Free

All letter-to-letter power wires and electronics stay safely unexposed and encased within the modular frame.

SpellBrite Specifications

Dimming 6 brightness settings from ultra-bright to nightlight dim
Animation 8 settings: 3 speeds of pulse, 3 speeds of flash, 1 mini-pulse, and static
Mounting Options Hang it from chains, rest it on a flat surface, or mount it to wall
Height 6 ¼" per row
Depth 1 ½"
Width Depends on message and number of letters used
Overall Dimensions The sign builder will show you the dimensions for custom signs
Frame Design See-through
Multi-Row Capable Yes
Voltage 12V DC
Linkable Power Yes. Depending on the power draw, multiple rows can be powered by one power supply. The sign builder is designed to minimize the number of power supplies.
Remote Control Power Yes, with Optiva® remote control accessory
Lens Shape Convex
Lens Color Colored, based on LED color
Lens Material Impact-resistant acrylic
Viewing Angle 180 degrees
Adjustable Pitch Yes, with Optiva hang tab accessory
Electrical Listing UL, cUL, CE

SpellBrite is Tough

TOUGH - The LED letters are housed in impact-resistant acrylic and ABS plastic.

Displaying Your Sign

Hang it from chains, rest it on a flat surface or mount it on a wall.

Animation and Dimming Demo

8 animation settings: 3 speeds of pulse, 3 speeds of flash, 1 mini-pulse, and static. 6 brightness settings from ultra-bright to nightlight dim.

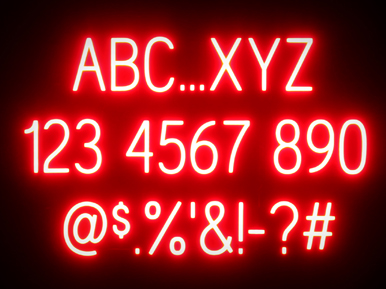

SpellBrite Letters, Numbers and Special Characters

Frequently Asked Questions (FAQs)

We currently offer SpellBrite in red, white, blue or green.  (Tip: the colors most visible from a distance in daylight are red, white or green. More on why in the question below.)

At night all colors are highly visible. During the day red, white and green are more visible from a distance than blue for reasons of physics and biology. You can check this out yourself when you see any red open sign with a blue orbit. Back up slowly and the blue will fade away while the red holds strong. (Please watch for vehicles while doing this!) For this reason, if you want a bright sign for your window to attract passersby during the day, we recommend Red, White or Green SpellBrite.

A through Z, 0 through 9, plus space, period, ampersand (&),  dollar sign ($), percent sign (%), apostrophe (‘), hyphen (-), question mark (?), hashtag (#) and at (@).

We currently offer one font and one size of SpellBrite. We selected this font and size, because it is very visible from a distance.

No, when you use our sign builder (“Create A Sign”) to create a sign, it will configure all the components you need, including power supplies, end caps and other accessories if any. When the price comes up, click on “Sign Details +” and you will see all components needed (and included). Similarly, if you purchase one of the signs listed, say BEER TO-GO, it will include what you need (power supplies, end caps, etc). We want to make the purchase process easy, and with no surprises!

The sign was developed as an indoor sign and is UL listed and warrantied for indoor use. We do not recommend it for outdoor use, but we understand that some customers have used the sign outdoors, typically placing it where it is protected from the elements.

We offer multiple options: our 12V 1 Amp and 12V 3 Amp Power Supplies plug into any standard electrical outlet, our 12V AA Battery Pack will let you take your sign “on the go”, and our 12V Car Adapter provides extended illumination using your 12V car/boat battery. We also offer a 10’ long DC extension cable if your power source is far from your sign.

12 volt, DC.

Our “Create Your Sign” application will automatically tell you the power draw of your sign as you type, but a basic rule of thumb: 7 or fewer characters for red (5 or fewer for white, blue and green) will work with our 12V 1 Amp power supply and 8-21 characters for red (6-15 for white, blue and green) will work with our 12V 3 Amp power supply. SpellBrite will only pull the power it needs, so you can run 3 letters on our larger 12V3A power supply, for example, without issue. More than 15-21 letters often requires more than one power supply.

Yes, one End Cap Kit is required to complete each sign row. The kit contains the left end cap, right end cap, 2 hanging chains and 2 mounting hooks. The left end cap houses the power in/out jacks, on/off switch, dimmer control and the animation control. The left and right end caps include holes on the top and bottom corners for hanging

SpellBrite signs come with a one-year warranty.  See warranty.

To clean, wipe gently with a soft, dry cloth. Never immerse SpellBrite in water or use solvents or chemicals to clean your sign.

You are really only limited by the height of your windows, although you may generate the greatest success by keeping your message succinct and to the point. Your customers are “on the go” and very busy these days. Make sure they can read your message with a quick turn of the head while driving by at 40-50 mph, day and night.

The number of letters on one sign row is usually limited by the width of your windows. This is easily solved by creating individual signs with end caps that fit within each window frame and mounting them at the same height. Our “Create Your Sign” application will tell you the exact width of your sign as you type your sign into the application. Try it here.

Our sign builder (“Create Your Sign”) does that for you – it will select and include the power supply(ies) you need based on the sign you have created. The specific sign messages we list also come with the appropriate power supply. If you have a kit or are changing your sign message, you can use the “Create Your Sign” application to determine the power draw and make sure you are using the appropriate power supply(ies). Create the sign you want, and then click on the “Price This Sign.” Button. When the price comes up, click on “Sign Details +” to see the power draw for each row and the whole sign. This will also show all components needed (and included) at the price listed.

Use our 10’ DC Power Extension to extend the length of your SpellBrite AC/DC power supply or car adapter cord by 10 feet. The 10 Foot DC Power Extension is sold separately as an accessory. See it here.

Each SpellBrite left end cap includes a built-in “Power IN” and a “Power OUT” jack so you can easily pass power from one sign row to another without having to use additional power supplies. Simply plug the power supply into the “Power IN” jack on row 1 and use our 2’ DC Jumper Cable to pass power from row 1 to row 2. As you build multi-row signs in our “Create Your Sign” application, the 2’ DC Power Jumper Cables will be added to your order as needed. Try it here.
